Aluminum Angle Spill Berm
Secondary Containment Berms
The Ultra Aluminum Angle Spill Berm is the perfect choice for secondary spill containment under frac tanks, vehicles, storage tanks, chemical drums, and other hazardous materials. Units shown here feature a high-resistance fabric liner and removable aluminum angle brackets to build a high-capacity system around your stored items. When not in use, brackets can be removed for easy transportation to a new storage area. See our Aluminum Angle Spill Berm video below for more information.
Questions? We can help! Call our team at 1-863-261-8388 or fill out our quote request form to discuss your requirements.
Learn More About the Aluminum Angle Spill Berm Through This Video
Ultratech Aluminum Angle Spill Berm Specifications
| Part Number | Dimensions ft. (m) | Containment Capacity gal. (L) | Weight lbs. (kg) |
|---|---|---|---|
| Ultratech 8250 | 6 x 4 x 1 (1.8 x 1.2 x .3) | 179 (677.6) | 21 (9.5) |
| Ultratech 8251 | 6 x 6 x 1 (1.8 x 1.8 x .3) | 269 (1018.3) | 26 (11.8) |
| Ultratech 8252 | 10 x 10 x 1 (3 x 3 x .3) | 748 (2831.5) | 52 (23.6) |
| Ultratech 8270 | 20 x 10 x 1 (6.1 x 3 x .3) | 1496 (5663) | 88 (39.9) |
| Ultratech 8271 | 30 x 10 x 1 (9.1 x 3 x .3) | 2244 (8494.5) | 124 (56.2) |
| Ultratech 8272 | 40 x 10 x 1 (12.2 x 3 x .3) | 2992 (11326) | 160 (72.6) |
| Ultratech 8273 | 50 x 10 x 1 (15.2 x 3 x .3) | 3740 (14157.4) | 196 (88.9) |
| Ultratech 8274 | 12 x 12 x 1 (3.7 x 3.7 x .3) | 1077 (4076.9) | 69 (31.3) |
| Ultratech 8275 | 20 x 12 x 1 (6.1 x 3.7 x .3) | 1795 (6794.8) | 102 (46.3) |
| Ultratech 8276 | 30 x 12 x 1 (9.1 x 3.7 x .3) | 2692 (10190.3) | 144 (65.3) |
| Ultratech 8277 | 40 x 12 x 1 (12.2 x 3.7 x .3) | 3590 (13589.6) | 185 (83.9) |
| Ultratech 8278 | 50 x 12 x 1 (15.2 x 3.7 x .3) | 4488 (16988.9) | 227 (103) |
| Ultratech 8253 | 60 x 12 x 1 (18.3 x 3.7 x .3) | 5385 (20384.4) | 268 (121.6) |
| Ultratech 8279 | 15 x 15 x 1 (4.6 x 4.6 x .3) | 1683 (6370.8) | 95 (43.1) |
| Ultratech 8280 | 20 x 15 x 1 (6.1 x 4.6 x .3) | 2244 (8494.5) | 118 (53.5) |
| Ultratech 8281 | 30 x 15 x 1 (9.1 x 4.6 x .3) | 3366 (12741.7) | 165 (74.8) |
| Ultratech 8282 | 40 x 15 x 1 (12.2 x 4.6 x .3) | 4488 (16988.9) | 212 (96.2) |
| Ultratech 8254 | 50 x 15 x 1 (15.2 x 4.6 x .3) | 5610 (21236.2) | 259 (117.5) |
| Ultratech 8255 | 66 x 15 x 1 (20.1 x 4.6 x .3) | 7405 (28031) | 334 (151.5) |
Spill Containment Berm Compatibility: Due to the large variety of items that require secondary containment, liners are built from several different liner materials to accommodate the storage and containment of the following materials:
- Hydrocarbons/Oil
- Fuel (Diesel, Jet A, etc.)
- Chemicals
- Frac Storage
- Process/Production Water
- Water Containment
Please contact us for additional information regarding this spill berm and compatibility requirements. We are always happy to work with you to find the best fabric and containment option for your location.
Questions? We can help! Call our team at 1-863-261-8388 or fill out our quote request form to discuss your requirements.
See How This Spill Berm Has Been Used

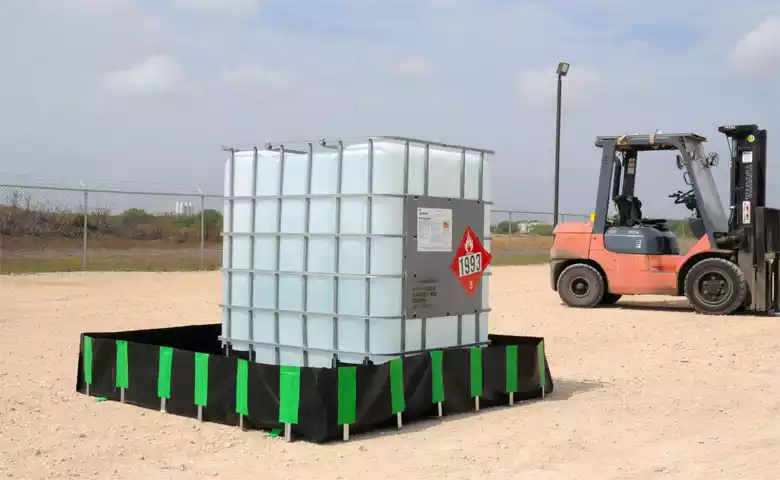

As part of our flexible containment product line, Aluminum Angle Spill Berms are well equipped for placement under multiple items including both stationary storage vessels and moving vehicles. Typical items stored within the berm include the following:
- Chemical Vessel Containment
- Oil Drum Storage
- Frac Tank Containment
- Vehicle & Equipment Spill Control
- Decontamination of Products
Oil Field Containment: Spill containment berms are an excellent choice for secondary containment under frac
tanks, oil field storage tanks, hydraulic lines, valves, and more. Available with wall heights one foot (1') or higher,
these berms are the perfect way to contain liquids in your location.
area provides ample space for liquid to be stored. Berms are often used underneath tanks, drums, and storage
vessels to naturally contain liquids in your location.

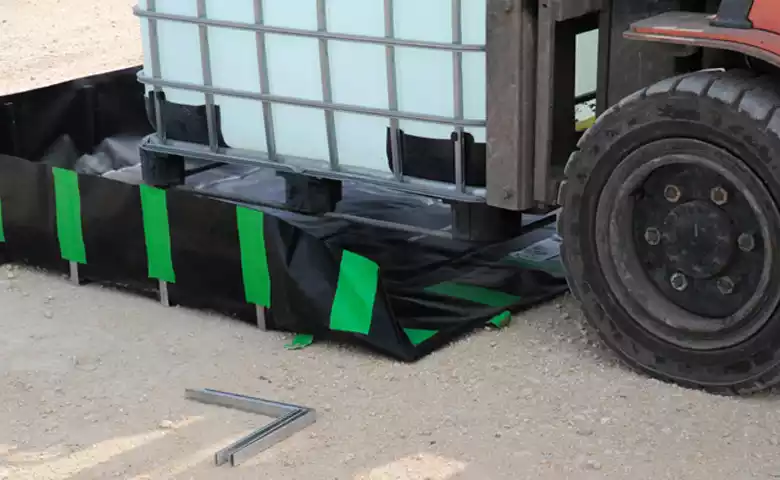

Vehicle Containment Berm: Another common application for these berms is for vehicle secondary containment.
With aluminum angles, one wall of the berm can be easily lowered to allow for vehicles to drive directly on to the
berm for storage in the containment area. For additional containment options on moving equipment, please check
out our Foam Wall Containment Berms.
Containment berms are built using various materials to help meet your particular secondary containment requirements. They have frequently been made to withstand large tanks, industrial machinery, and being driven over by large vehicles. Designed for strength, these berms are often used to catch liquids under leaking pipes, hydraulic lines, pumps, large vehicles, or oil drums.
Interested in Storage for Drinking Water, Grey Water, or Fuel? Check out our Collapsible Pillow Tanks.
