Drive Through Spill Containment Berms

Secondary Containment Berms

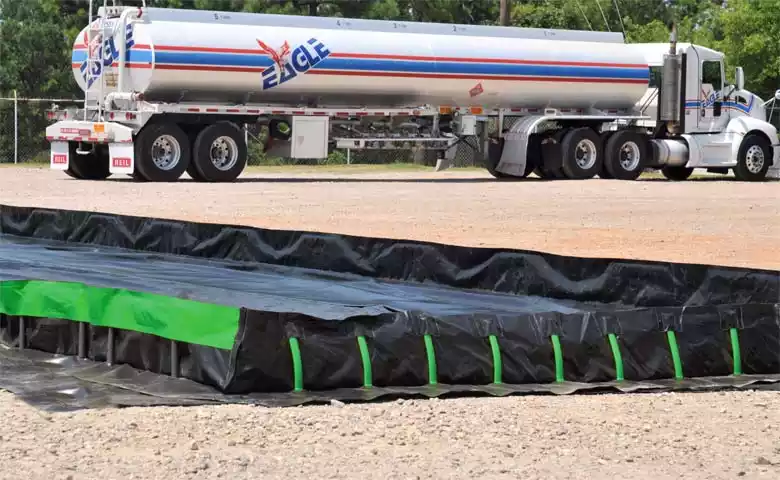

Drive Through Spill Containment Berms are equipped to help with multiple drive through applications that require vehicles and/or machinery be moved on and off the berm. Typical construction of these berms will include foam wall ends and aluminum angle side walls. This provides quick access on and off the berm, while still offering on increased wall height.

Liner Material Width Length Height Capacity Additional Documents

Reinforced PVC
XR-5/Elvaloy/Equivalent Material

10' (3 m) 10' (3 m) 1' (0.305 m) 748 gal. (2,831 L)
Drive Through Berms Product Flyer
12' (3.7 m) 12' (3.7 m) 1' (0.305 m) 1,077 gal. (4,077 L)
12' (3.7 m) 26' (7.9 m) 1' (0.305 m) 2,334 gal. (8,835 L)
12' (3.7 m) 50' (15.2 m) 1' (0.305 m) 3,232 gal. (12,234 L) Drive Through Berms Instructions
14' (4.3 m) 54' (16.5 m) 1' (0.305 m) 4,488 gal. (16,989 L)
14' (4.27 m) 54' (16.46 m) 1' (0.305 m) 5,655 gal. (21,406 L)
15' (4.57 m) 50' (15.24 m) 1' (0.305 m) 5,610 gal. (21,236 L)
15' (4.57 m) 66' (20.12 m) 1' (0.305 m) 7,406 gal. (28,035 L)

Larger, smaller and custom sizing is always available, so please do not hesitate to ask for a size that will better fit your storage requirements. Foam walls can be increased in height to 8", while aluminum angles can be built higher if needed.

Liner Compatibility

All of our containment berm models are built with a berm liner material made out of either PVC, LLDPE, XR-5, Elvaloy, Polyurethane, or an equivalent material. These fabrics are designed to offer a high resistance to several different liquids including the following:

  • Frac Fluids
  • Hydrocarbons
  • Fuel
  • Water Types
  • Oil

Berm liners are designed to offer compatibility for short periods of time (typically during a spill or leak). If you are looking for something that can contain liquids for significantly longer periods of time, please check with our sales team to ensure that the fabric offered is equipped for long term storage.

Questions? We can help! Call our team at 1-863-270-8118 or fill out our quote request form to discuss your requirements.

See How Spill Containment Berms have been Used

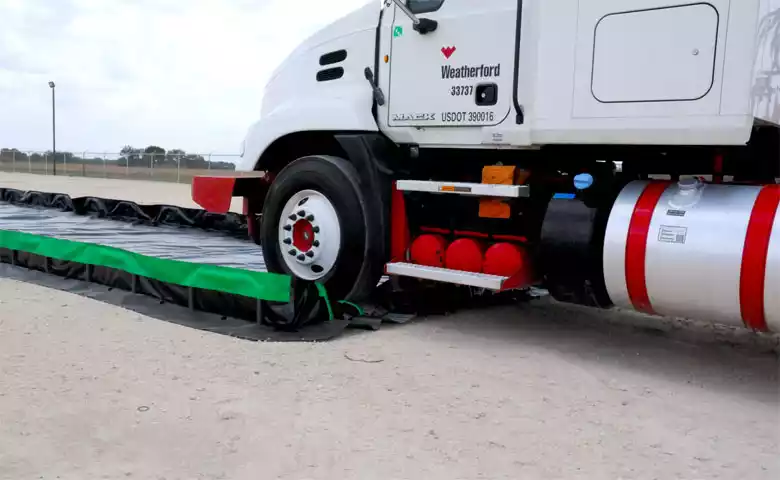

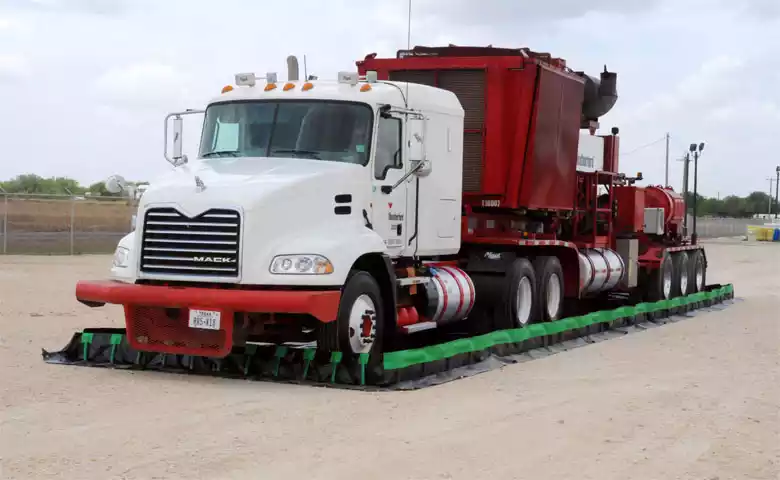

spill containment bermsVehicle Containment: Containment under vehicles is often a must for trucks, tankers, and other vehicles that are storing potentially harmful liquids. This can include anything from fuel tankers to water transportation vehicles.

Frac Tank Containment: A favorite application where these berms have been used is during frac tank containment. Foam walled berms allow frac tanks to quickly move on and off the berm as they are needed around the site.

Drive through berms can be used in any application that allows for items to rolled or moved right onto the berm. Items can include anything from cars to larger tankers. In addition, we also offer several other berms. Check our our Spill Containment Berms to view our complete containment variety.
