Foam Wall Containment Berm

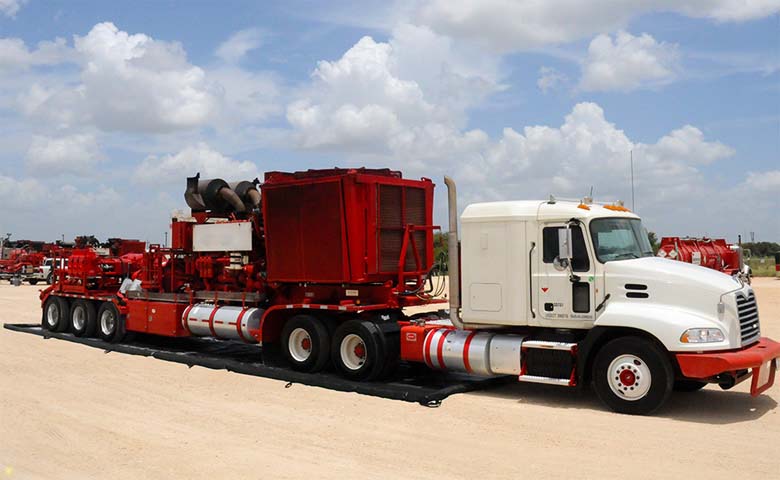

The Foam Wall Spill Containment Berm is a common choice for applications that require vehicles, tankers, machinery or other large equipment to be moved directly onto the berm. With a wall height of either four, six, or eight inches (4", 6", or 8"), these berms can easily indent to allow for larger equipment to be moved directly onto the berm.

Liner Material Width Length Height Capacity Additional Documents

LLDPE
Reinforced PVC
XR-5/Elvaloy
Polyurethane

6 ft. (1.8) 6 ft. (1.8) 4" (0.10 m) 90 gal. (341 L) Foam Wall Berms Product Flyer
(pdf)
10ft (3 m) 10 ft. (3 m) 4" (0.10 m) 247 gal. (935 L)
10ft (3 m) 20 ft. (6 m) 4" (0.10 m) 494 gal. (1,870 L)
10 ft. (3 m) 40 ft. (12.2 m) 4" (0.10 m) 997 gal. (3,774 L) Foam Wall Berms Instructions
(pdf)
10 ft. (3 m) 50' (15.24 m) 4" (0.10 m) 1,247 gal. (4,720 L)
15 ft. (4.6 m) 20 ft. (6 m) 4" (0.10 m) 748 gal. (2,831 L)
15 ft. (4.6 m) 60 ft. (18.3 m) 4" (0.10 m) 2,244 gal. (8,494 L)


**
Optional Accessories include:

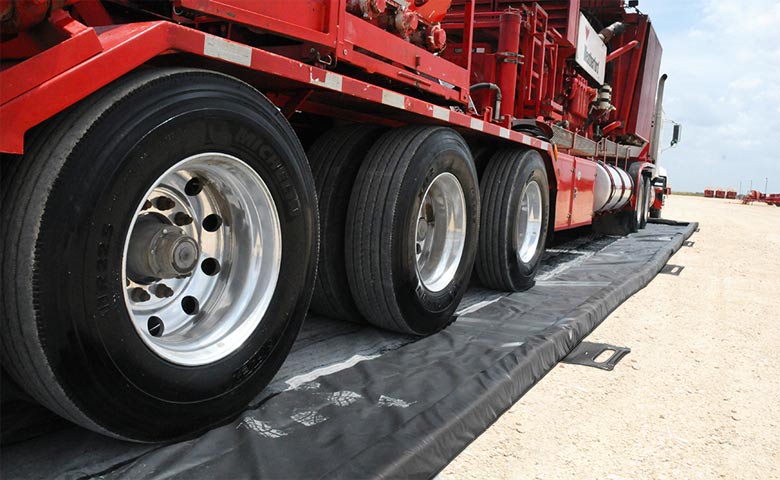

  • Tread Guards(featured in the image above)
  • Compression Pads
  • Ground Liners

Tread guards are designed to help limit impact during drive through operations, while compression pads and liners help protect the bottom of the berm against abrasion and heat.



Additional sizing, including wall heights up to 8", extended lengths and additional widths are also available. Please do not hesitate to ask for specific sizing that can meet the exact needs of your location.

Liner Compatibility Options

All of the liners used for our berms are designed to be highly compatible with various liquids including oil, hydrocarbons, fuel, chemicals, frac fluids, production water, process fluids, and various types of water.

  • Hydrocarbons/Oil
  • Fuel (Diesel, Jet A, etc.)
  • Chemicals
  • Frac Storage
  • Process/Production Water
  • Water Containment

As a secondary containment product, berms are equipped to handle a short contact time with each of these liquids. If you are looking for something that can handle extended contact or be used for liquid storage, please check with our sales team to ensure these liquids are able to handle your intended storage material.

Questions? We can help! Call our team at +1-772-646-0597 or fill out our quote request form to discuss your requirements.

See How The Spill Containment Berm has been Used:

spill containment bermsOil Field Containment: Due to the flexibility of the foam containment walls, these berms are one of the most commonly used options for frac tanks, fuel tanks, and other oil field equipment. Walls of the berm can be repeatedly driven over, providing easy access on and off of the berm.


Car Wash/Repair Shops:
Another common application for these berms is for use in car washes, repair shops and other vehicle storage areas. These berms are placed directly under vehicles during washing or repair to catch any drips, leaks or spills that may occur while work is being performed.

Tankers & Large Machinery: Since these berms are highly flexible in their design, they can be used for almost any item that can be rolled or moved directly over a foam wall. This includes tankers, equipment, large machinery, dumpsters, dump boxes, vehicles and more.

Similar to our flexible tanks, spill containment berms are a highly flexible product that can be built in many different designs, styles and models. Some of our standard designs include berms with aluminum angles or foam and aluminum angles. For more information, check out all of our Spill Containment Products.

Interested in Storage for Drinking Water, Gray Water, or Fuel? Check out our Collapsible Pillow Tanks.

Questions? We can help! Call our team at +1-772-646-0597 or fill out our quote request form to discuss your requirements.
